Description
Main features

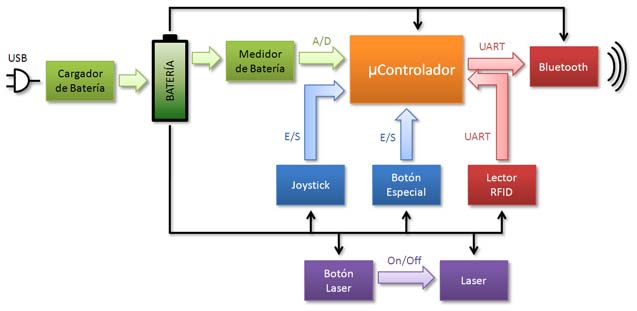

The main feature of the Presenter is the ability of recognizing the current user with his built in RFID reader. Through this functionality there are many and diverse possibilities of using this Presenter.
The device has a five position joystick for a better interaction with the presentation and one special button for extra functionality. In the actual application, this button adds the extra functionality of changing between documents directly from the Presenter.
The communication between the Presenter and PC it happens via Bluetooth, communication system present in many PC, mainly in laptops.
It has included a laser pointer also to help the speaker to highlight some elements or points of the presentation.
The power supply is ensured by a 3.7v LiPo battery, whose recharge is ensured by the USB connector from the back end of the device.
Basic functionality
The administrator has a small application on a PC from where he can manage the speakers and their documents for the presentations. This is the same system where are registered all the RFID card’s linked to every speaker.
The device and the PC will connect via the application and the PresenterApp application passes to presentation mode. In this mode, when a tag is detected the application will launch the presentation of the current user who will realize his presentation through the joystick.
Through the special button with the joystick, the user is able to change between different documents recognized by the application: PowerPoint and Prezi presentations, PDF documents, video, audio and even Flash animations.
